Nazwa marki:	Sihovision
Numer modelu:	SC15
MOQ:	1 kawałek
Cena £:	Zbywalny
Szczegóły opakowania:	1 szt./szt. 60x40x18cm 8kg
Warunki płatności:	T/T, PayPal, L/C, D/A, D/P, Western Union, Moneygram

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Shenzhen, Chiny

Orzecznictwo:

CE,FCC,RoHS

Nazwa produktu:

15-calowy komputer z wbudowanym panelem

CPU:

Celeron J4125

Klasa IP:

panel przedni IP65

Jasność:

400CD/M2

Dotykać:

Rzutowany dotyk pojemnościowy (do 10 punktów)

Rezolucja:

1024*768

Współczynnik kształtu:

4: 3

Wyświetl kąt:

85 °/85 °/85 °/85 ° (R/L/U/D)

Podkreślić:

15 inch industrial LCD panel PC

1024x768 all in one panel PC

industrial touch panel PC with camera

Opis produktu

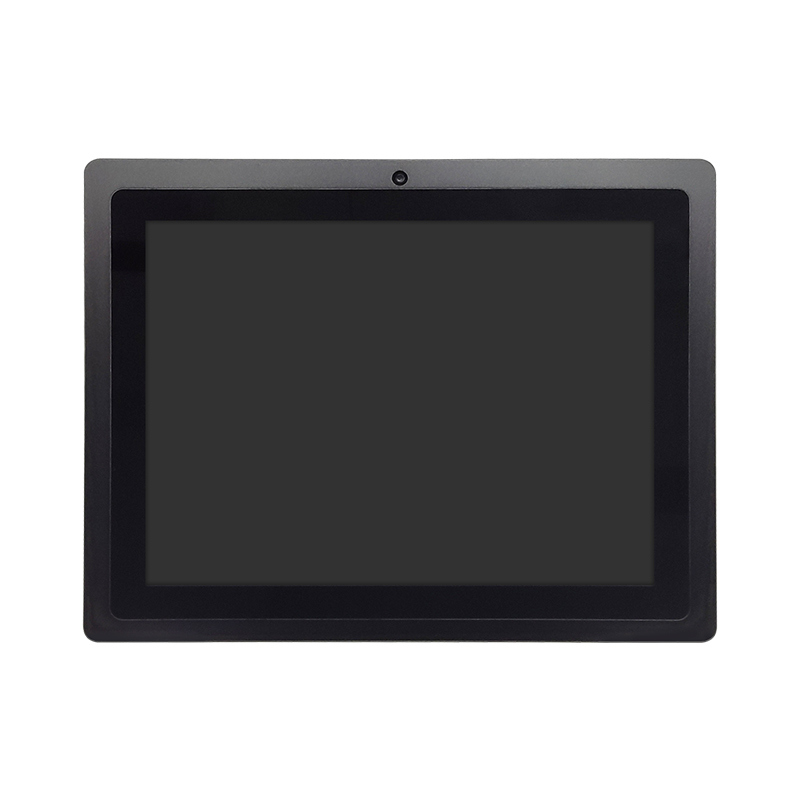

15 Inch 1024x768 Industrial LCD All In One Panel PC With 12MP Camera

Key Features Analysis:

1. Durability & Weather Resistance

Aluminum alloy construction with protective coatings ensures longevity
IP65 waterproof rating means it's dust-tight and protected against water jets
Anti-UV treatment prevents yellowing and degradation from sun exposure

2. Display Quality

Industrial LCD with full viewing angle provides clear visibility from multiple positions
Built for continuous operation rather than consumer-grade displays

3. Touch Interface

10-point capacitive touch supports multi-touch gestures
7H hardness tempered glass is highly scratch-resistant and durable
2mm thickness provides solid protection

4. Camera Integration

12MP front camera suggests applications like video conferencing, surveillance, or quality inspection

5. Industrial Reliability

24/7 operation capability for continuous use environments
Wide temperature range (-20°C to 70°C / -4°F to 158°F) suitable for outdoor installations or harsh environments

Specification

Model:SC15
PC
CPU	Intel® Celeron J4125, Base 2.4 Ghz, Turbo 2.7 Ghz, Fanless
Chipset	Intel® Gemini Lake
Memory	8G DDR4-2400/2133
Storage Capacity	256G SATA3.0
Graphics	Intel® UHD Graphics 600
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1*Realtek RTL8106E Gigabit network card
Wireless Network	WIFI 4G Optional
Preinstalled OS	Window10 Pro
Operation System	Support Windows 7/8/10/11, Linux, Ubuntu, Debian, etc.
I/O
USB	2* USB2.0, 2* USB3.0
COM	2* COM RS232
LAN	1* RJ45
Video Outputs	1VGA, 1HDMI
Audio	1* 3.5mm Line-out, 1* 3.5mm Line-in
Power input	1* 12V DC jack
Other	1* Power on/off button
LCD panel
Screen diagonal	15"
Display active area	305.1(W)×229.1(H) mm
Resolution	1024*768
Aspect ratio	4:3
Brightness (cd/m²)	300 nits(1000 nits Optional)
Brightness control	N/A
Contrast ratio	1000:1
View angle	85°/85°/85°/85° (R/L/U/D)
Support Color	16.7M colors
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	N/A
Luminousness	≥90%
Touch controller IC	ILITEK5200
Available touch drivers	Windows, Linux, Android, Mac, etc
Touch bonding	Air bonding
Touch optional	Resisive touch, non touch, IR touch optional
Power Supply
Working voltage	DC 12V
Power consumption	20W
Power adapter	AC 100 ~ 240V input and DC +12V@5A MAX output, 60W
Enclosure
Material	Galvanized cold rolled plate shell
Finish	Electrostatic powder spraying
Color	Black
VESA mounting	VESA mount 7575/100100mm, Panel mount
IP grade	Front IP65 waterproof
Operating Environment
Temperature Range	Operating: -20 °C(-4℉) to 70°C(158℉), Storage: -30 °C(-22℉) to 80°C(176℉)
Relative humidity	Up to 100% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B
Packing Details
Product weight	Net weight 4.5kg Gross weight 6.3kg
Product Dimension	380×300×79mm
Packing info	1pcs/ctn 53×16×40cm 6.3kg 2pcs/ctn 53×30×40cm 13kg
Accessories	Power cable, Power supply, Embedded mount screws
Other
Warranty	1 year warranty
Certificate	CE, FCC, RoHS
