Nazwa marki:	Sihovision
Numer modelu:	SC15
MOQ:	1 kawałek
Cena £:	Zbywalny
Szczegóły opakowania:	1 szt./szt. 51×14×39 cm, 7kg
Warunki płatności:	T/T, PayPal, L/C, D/A, D/P, Western Union, Moneygram

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Shenzhen, Chiny

Orzecznictwo:

CE,FCC,RoHS

Nazwa produktu:

15 -calowy panelu wysokiej jasności komputer

CPU:

Celeron J4125

Klasa IP:

panel przedni IP65

Jasność:

1000cd/m2

Dotykać:

Rzutowany dotyk pojemnościowy (do 10 punktów)

Rezolucja:

1024*768

Współczynnik kształtu:

4: 3

Wyświetl kąt:

85 °/85 °/85 °/85 ° (R/L/U/D)

Podkreślić:

15 inch industrial LCD panel PC

high brightness touch panel PC

1000 nits embedded panel PC

Opis produktu

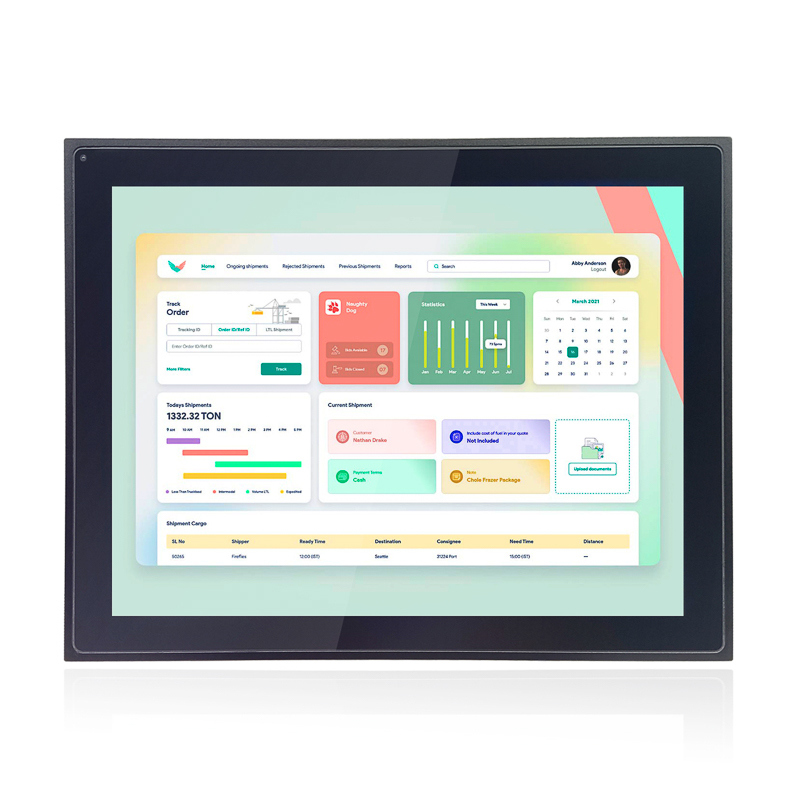

15 Inch High Brightness Industrial grade 1000 Nits LCD Panel PCs

Durability & Protection:

Front bezel construction: Aluminum alloy with sandblasting finish and hard anodizing provides excellent corrosion resistance and durability
UV-protection: Prevents yellowing and degradation from sun exposure
IP65 rating: Dust-tight and protected against water jets (suitable for outdoor/semi-outdoor use)

Display Quality:

Industrial LCD panel: Built for reliability rather than consumer use
Wide viewing angles: Content visible from multiple positions
High nits/true color: Accurate color reproduction with high brightness

Brightness Performance:

1000 nits: Approximately 3-4x brighter than typical indoor displays, ensuring visibility in direct sunlight

Environmental Resilience:

Operating range (-20 to 70°C / -4 to 158°F): Functions in extreme cold and heat
Storage range (-30 to 85°C): Can withstand even harsher conditions when powered off

Reliability:

7x24 operation: Designed for continuous 24/7 use, 365 days a year
High performance motherboard: Ensures stable, long-term operation

Specification

Model:SC15
PC
CPU	Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless
Chipset	Cemini lake
Memory	4GB DDR4 (8gb optional)
Storage	128GB SSD (256GB, 512GB optional)
Graphics	Intel UHD Graphics 600
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI optional
Expansion Slots	1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module
Preinstalled OS	windows 10 pro 64bit
Operation System	Support Windows 8/10, Linux, Ubuntu, Debian, etc.
External I/O Ports
USB	2xUSB3.0, 2×USB2.0
LAN	1×RJ45
COM	2×RS232 (One of them can be RS485)
Video Outputs	1×VGA, 1×HDMI
Audio	1 × 3.5mm Line-out, 1 × 3.5mm Line-in
Other	1×Power on/off button
LCD panel
Panel size	15"
Display active area	304.128(W)×228.096(H) mm / 11.973 in × 8.980 in
Resolution	1024*768
Aspect ratio	16:9
Brightness (cd/m²)	1000 nits sunlight readable
Brightness control	PMW software adjustment(Light sensor for auto dimming optional)
Contrast ratio	800:1
View angle	85°/85°/85°/85° (R/L/U/D)
Support Color	16.7M
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	Anti glare (chemical etching)
Luminousness	≥85%
Touch controller IC	EETI 80
Available touch drivers	Windows, Linux, Android, Mac, etc
Touch bonding	Air Bonding
Power Supply
External Power Supply	AC 100-240V
Working voltage	DC 12V (DC 36V Optional)
Power consumption	≤40W
Power adapter	AC 100 ~ 240V input and DC +12V@5A MAX output, 60W
Enclosure
Material	Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin
Finish	Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated
Color	Black
VESA mounting	VESA mount 7575/100100mm
IP grade	Front panel IP65 waterproof
Cooling system	Passive - Fanless
Operating Environment
Temperature Range	Operating: -20 °C(-4℉) to 70°C(158℉), Storage: -30 °C(-22℉) to 80°C(176℉)
Relative humidity	Up to 99% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B
Packing Details
Product Weight	Net weight 5kg (11.023 lb) Gross weight 7 kg (15.432 lb)
Product Dimension	402.9×249.9×63mm (15.862×9.838×2.480 in )
Packing info	1pcs/ctn 51×14×39cm (20.078×5.511×15.354 in ) 7 kg (15.432 lb) 2pcs/ctn 51×30×39cm (20.078×11.811×15.354 in ) 14 kg (30.864 lb)
Accessories	Power adapter, power cord, Wall mounting brackets
Other
Warranty	1 year warranty
Certificate	CE, FCC, RoHS
